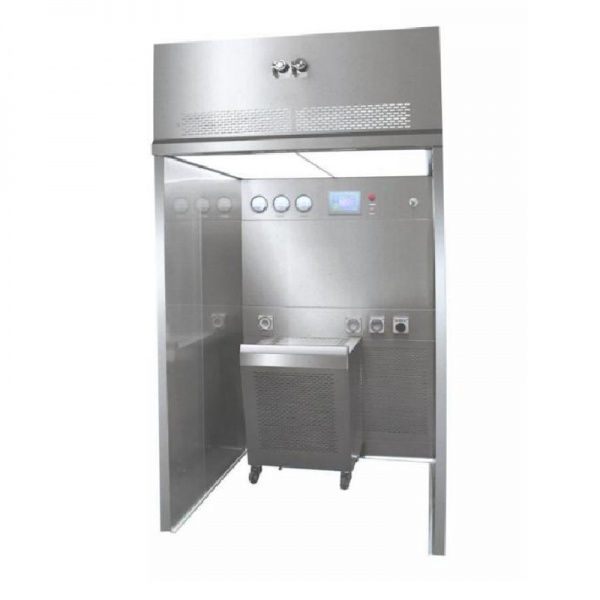

Negative Pressure Weighing Room

working principle:
The small amount of dust generated during operation in the negative pressure weighing room is first filtered by the primary and intermediate filters, and then sent to the high-efficiency static pressure box through the fan. After being filtered by the high-efficiency filter, 80-90% of the clean air is evenly sent into the working area of the weighing hood under the action of the uniform flow membrane, and 10-20% of the clean air is directly discharged outside the weighing hood. In this way, a negative pressure airflow is always formed in the working area of the weighing hood to ensure that dust does not pollute the room outward.
Product Features and Configuration Description:
Modular design, flexible and simple installation, with an integrated circular arc structure at the connection between the inner side and the ground;
The automatic frequency conversion system for wind speed detection ensures that the wind speed in the working area is always in a uniform and stable operating state (0.45 ± 20% m/s).
◆ Display the pressure difference before and after the filter (which can be directly displayed by a pressure difference gauge or a touch screen), monitor the effective operation of each filter in real time, and display an alarm for pressure difference exceeding the limit;
The unique airflow diversion design in the main workspace ensures negative pressure airflow in the weighing hood workspace, effectively protecting personnel safety and avoiding environmental pollution and product cross contamination;
Intelligent control mode and fault alarm system effectively ensure the reliability of operation;
Humanized design makes the replacement of various filters more convenient, and unique air duct design effectively produces the overall working noise of the machine;
Configure multiple industrial sockets with a protection level of IP66 for powering electronic weighing instruments inside the equipment.
◆ Can be equipped with a complete set of Siemens touch screens, PLC controllers, and frequency converters according to user requirements; It can also be easily configured by directly adjusting and controlling through the external panel of the frequency converter;
◆ Optional cooling coils or air conditioners can be installed to balance the heat generated during operation;
◆ Customize non-standard size weighing rooms according to user requirements.

Xinlei Stainless Steel Products Company was established in 2002 with a registered capital of 10 million yuan.
Our company has long been committed to providing pharmaceutical companies with stainless steel clean furniture and stainless steel products that meet GMP certification requirements, as well as pipeline laboratory design and installation. We are a professional and high-end supplier of stainless steel products and equipment. The company integrates development, production, and sales, committed to providing one-stop services for the pharmaceutical and related industries.
We have 15 professional designers of stainless steel clean furniture and stainless steel products that meet GMP certification requirements, and more than 50 senior technical personnel engaged in cutting, bending, splicing, welding, and polishing of stainless steel clean furniture. We have advanced production equipment such as laser cutting equipment, laser cutting equipment, imported bending machines, and several imported and domestic laser welding machines. Having a special equipment (pressure vessel) manufacturing license and GC2 pressure pipeline certificate
Our aim is to persevere and continue to welcome your arrival with better products and higher quality services.
